CanHaptics Project Iteration 1: Setting up the Canvas

An ‘art’ created while playing with tooltips

Goal

As a project iteration one, our goal was to explore the design space, first widely and then converging towards feasible alternatives.

Brainstorming

Linnea’s sketch made using the 10 x 10 approach
Marco penned down interactive UI elements
I worked on the interactive elements and haptic feedback sketches

As we shared our sketches and discussed them out loud, several themes emerged (as shown in the Miro Board). We pinned the major three. Each one of us took one of these themes for design and technical exploration:

1) Haptic Guidance (Marco): How the user will be guided during the coloring exercise? What type of feedback would be provided? Can a user customize the intensity and type of feedback?

2) Haptic Richness (Preeti): Can we design different haptic textures for different tooltips? What types of texture can we render using Haply? Can we generate haptic texture similar to physical tooltips like brush, crayons, etc.?

3) User Interface Design (Linnea): How the user will interact with the interface? How can they move between different coloring spaces? How would they select the tooltips and colors?

Thematically grouped ideas discussed during team brainstorming and faculty meeting (Miro Board Link)

Haptic Guidance

Haptic Guidance Ideas

We tagged these ideas with colors that denote implementation difficulty (green is easy, yellow is moderate, red is difficult). Marco played around with some of these ideas (marked in green ticks). Check his blog for more details!

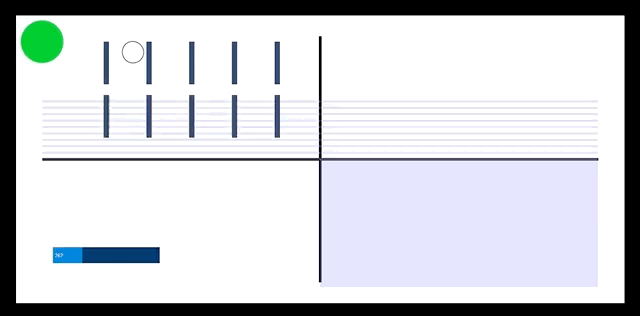

One of Marco’s explorations where the level of damping increases when you get close to a wall.

Haptic Richness

different texture ideas were drawn during brainstorming

I created a basic testing playground to test different textures. Changing simple elements like line widths, spacing, and damping parameters lead to different texture perceptions.

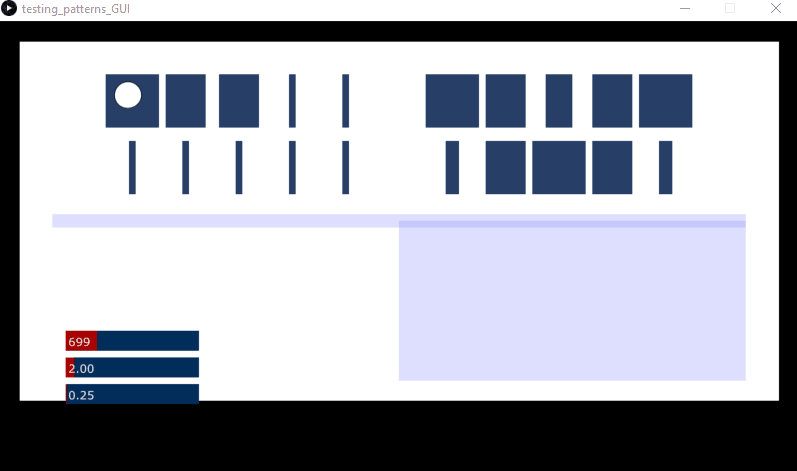

In the demo below, the top left box sequence feels like a contact-texture of a brush, whereas the bottom left sequence feels rough and more like a crayon. The top right feels like a dip and the bottom right feels like a bump. Playing around with the damping factor (topmost slider), I noted values between 450 to 850 work the best. The middle horizontal line here was for testing a push-through wall texture, values between 500 to 970 work the best. Increasing the value beyond 970 leads to instability.

haptic texture demo (code)

Further, I am trying to dynamically vary texture on-screen by controlling the line width, spacing, and damping. I am in process of scripting a modular code. It took some time to understand the Fisica objects and the world parameters.

Setting Up First Sketching Prototype

modified maze.txt file

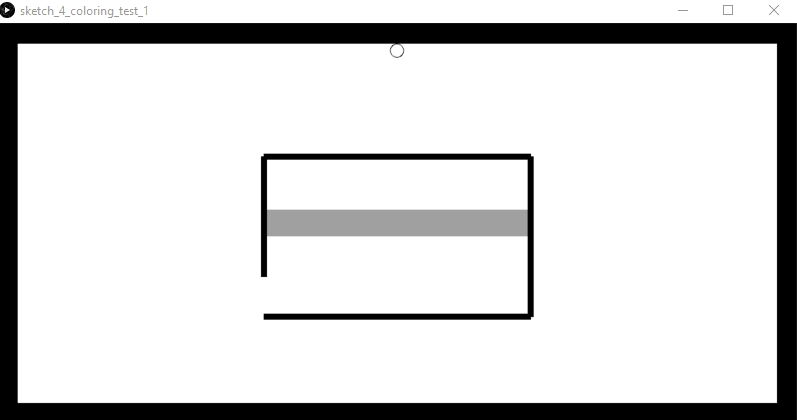

a simple coloring sketch

Next, I tested tool-tip traces on the screen. Technically, as we already know the x, y coordinates of Haply, it should be easy. I tried this processing example and overlaid pulsating ellipses at Haply’s end-effector coordinates but it wasn’t leaving any traces.

if (true) {
angle += 5;
float val = cos(radians(angle)) * 12.0;
for (int a = 0; a < 360; a += 75) {
float xoff = cos(radians(a)) * val;
float yoff = sin(radians(a)) * val;
fill(0);
ellipse((corr_posEE.x)*40 + xoff, (corr_posEE.y)*40 + yoff, val, val);
}
fill(255);
ellipse((corr_posEE.x)*40, (corr_posEE.y)*40, 2, 2);
}
the tool shows the overlaid ‘tracing’ element but leaving no traces (code)

Later on, I realized the background() function was constantly redrawing white layers and hiding the traces. Commenting out that line was a low-key “aha” moment. I was unfamiliar with the layering concept in processing (which Linnea figured out later. Kudos to her!!!).

void draw() {
/* put graphical code here, runs repeatedly at defined framerate in setup, else default at 60fps: */
if (renderingForce == false) {
background(255);
world.draw();
}

I tried some fun tooltips as added them as images to haplyAvatar. The idea is to add relevant haptic textures to suit the visuals. Playing with some of the color swatches and experiencing the visual effects already felt relaxing to me, especially the multicolor swatch (6th from the left) and the rainbow swatch.

public void b1(int theValue) {
tooltip = button_img[0];
haplyAvatar = loadImage(tooltip);
haplyAvatar.resize((int)(hAPI_Fisica.worldToScreen(tooltipsize)), (int)(hAPI_Fisica.worldToScreen(tooltipsize)));
playerToken.h_avatar.attachImage(haplyAvatar);
}
Playing with different visual tooltips (code). Which one is your favorite?

User Interface Designing

How can we move between bounded areas?

Linnea took this code forward and explored interface design that allows the user to engage and disengage with a coloring mode, move between bounded areas, switch colors, and change brush tips. She encountered several challenges while trying to create two independent cursors — one which takes the form of a tooltip and the other which appears as a cursor when coloring mode is disabled. Eventually, she figured out how the layering works in processing which was super exciting! Check her blog for more details!

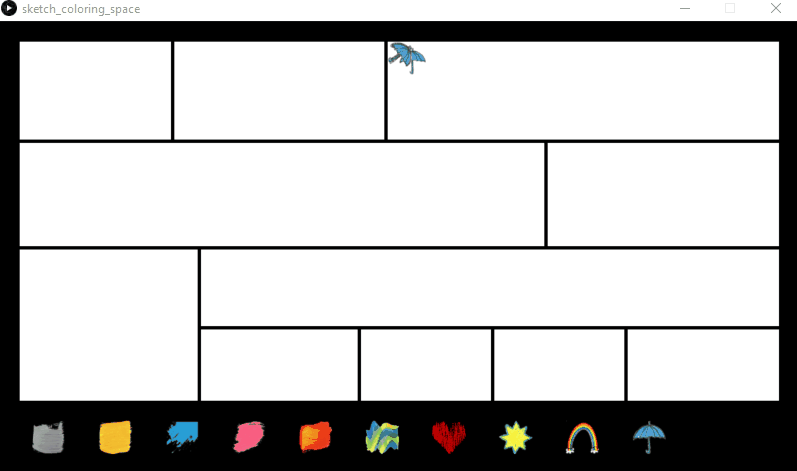

Linnea added a color panel and keyboard controls to move the cursor across bounding boxes

What didn’t go quite right?

What are the next steps?

Our individual components are yet to be integrated into a prototype. We are planning to have a prototype in which we can plug and play different concepts, for example, different haptic feedback for movements along the wall, types of texture and their mapping with physical mediums, and different sketch stencils.

As the project is aimed towards improving fine motor skill movement and reducing anxiety, we will read relevant work in the literature to inform our design decisions and evaluation metric—How should we design the sketching stencils to allow for improvement in fine motor skills? Should we also adapt tooltips for different fine-motor exercises? Which textures give a sense of pleasure and reduce anxiety? What type of tooltips can be included? Should we use similar tooltips like physical media or can we also explore unrealistic tooltips like fireworks, rustling leaves, firewood, rains that might serve hedonic goals?

Lots to look forward to!
Meanwhile, feel free to explore some of the color swatches and textures.
